Introduction
External leakage of hydraulic cylinder piston rods is a common issue in heavy equipment and industrial applications. It not only affects performance but also leads to downtime and increased maintenance costs.
In this guide, we’ll cover 6 practical solutions to prevent piston rod leakage and explain why hard chrome plating is an effective repair method.
Why Piston Rod Leakage Occurs
Piston rods operate in a reciprocating motion, which makes them highly susceptible to:
- Surface wear
- Seal damage
- Contamination
- Poor fit tolerance
To improve durability, piston rods are typically made from alloy steels such as 38CrMoAlA, offering high strength and wear resistance.
6 Effective Solutions to Prevent Piston Rod Leakage
1. Use Double-Lip Wiper Seals
Double-lip seals prevent dust and contaminants from entering the cylinder, protecting internal components and sealing performance.
2. Protect Seals During Painting Process
During equipment painting, seals should be protected with temporary covers to prevent paint contamination, which can damage sealing performance.
3. Optimize Seal Design Geometry
- Add an R1 radius transition
- Use a 7° lip angle design
This helps prevent material deformation at high temperatures and maintains sealing efficiency.
4. Apply Induction Hardening to the Rod Surface
Induction hardening improves:
- Surface hardness
- Impact resistance
- Bending strength
A hardened layer (≥2mm) can significantly enhance durability and structural stability.
5. Add Mechanical Protection for Piston Rods
Protective covers or guards can reduce damage from external impacts, especially in construction machinery like loaders.
6. Optimize Clearance Between Rod and Guide Sleeve
Proper clearance design ensures:
- Adequate oil film lubrication
- Reduced friction and heat
- Stable sealing performance
Incorrect clearance may lead to seal deformation and early leakage.
Advantages of Hard Chrome Plating for Piston Rod Repair
When piston rods are worn or damaged, hard chrome plating is one of the most effective repair solutions.
Key benefits:
- Improved surface hardness
- Excellent wear resistance
- Corrosion protection
- Extended service life
- Cost-effective compared to replacement
This process restores the rod surface and ensures stable performance even under high-speed and high-frequency operation.

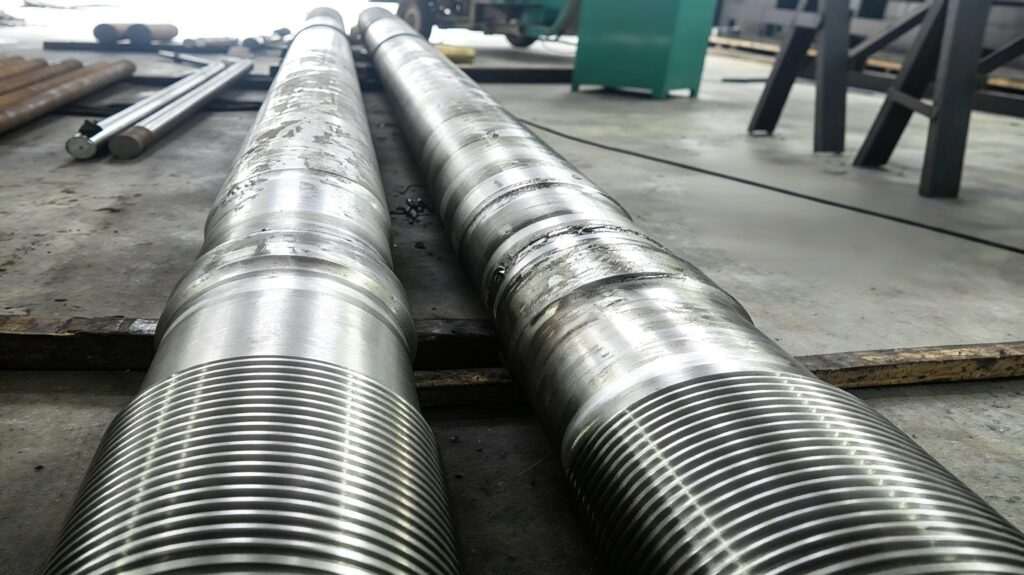

Our Precision Shaft & Piston Rod Machining Capability
As a professional CNC turning manufacturer specializing in shaft machining, we offer:

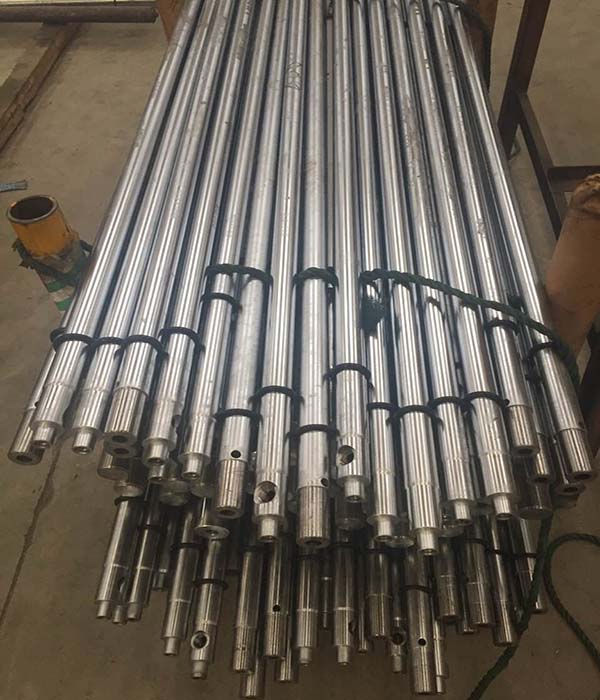

- Precision piston rod and drive shaft machining
- Tight tolerance control
- High-quality surface finishing (grinding & polishing)
- Hard chrome plating support
- Long shaft machining capability
- Fast lead time and global delivery
Conclusion
Preventing piston rod leakage requires a combination of proper design, material selection, and surface treatment. When damage occurs, hard chrome plating provides an efficient and reliable repair solution.
Choosing a reliable shaft machining partner is essential for long-term performance and cost control.
